AOI:

Athena 3D

Athena utilizes advanced technology with 12, 16, and 8-way projectors, significantly reducing shadow-induced errors for precise 3D measurement. It ensures comprehensive 2D and 3D inspection across all FOV areas, enhancing detection accuracy.

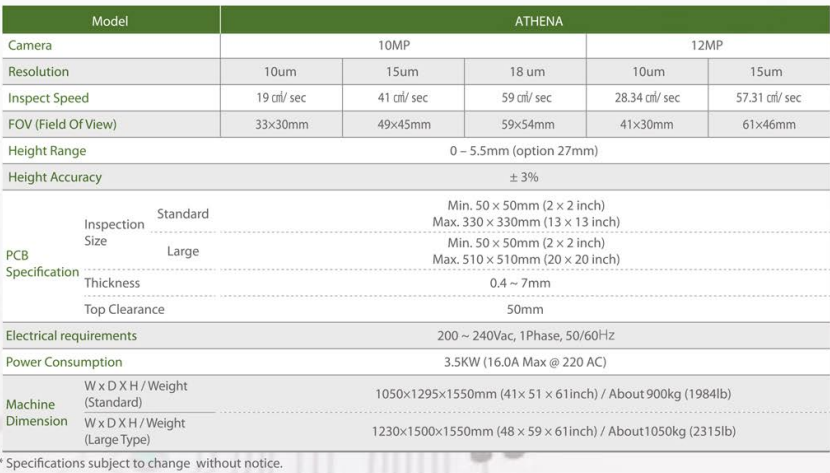

Model	ATHENA 3D
Camera	10 MP			12 MP
Resolution	10um	15um	18um	10um	15um
Inspect Speed	19cm/sec	41cm/sec	59cm/sec	28.34/sec	57.31 cm/sec
FOV(Field Of View)	33x30mm	49x45mm	59x54mm	41x30mm	61x46mm
Height Range	0 – 5.5 mm (option 27mm)
Height Accuracy	±3%
PCB Specification	Inspection Size	Standard	Min. 50 x 50mm (2 x 2 inch)
		Large	Max. 330 x 330mm (13 x 13 inch)
	Thickness	0.4 ~ 7 mm
	Top Clearance	50mm
Electrical Requirements	200 ~ 240Vac, 1Phase, 50/60Hz
Power Consumption	3.5KW (16.0A Max @ 220AC)
Machine Dimension	W x D x H / Weight (Standard)		1050x1295x1550mm (41x51x61inches) / About 900kg (1984lb)
	W x D x H / Weight (Large Type)		1230x1500x1550mm (48x59x61inches) / About 1050kg (2315lb)
