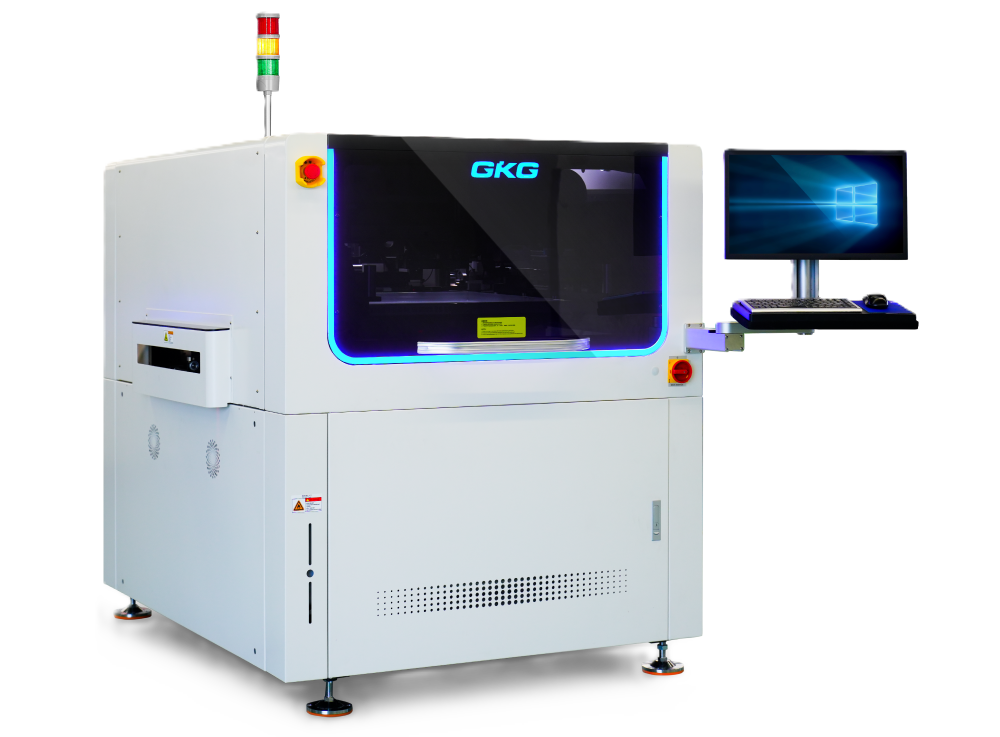

G-Tera

With the latest motion control architecture, the speed of G-Tera is
being cranked up by more than 30%. The conveyor Single-stage or 3-stage mode is automatically generated by programming.

AGV Assisted Auto Stencil Change System automatically change stencil trigger by command from the MES server. AGV will transport the new stencil to the rear side of the printer.

Lightning speed with core cycle time 5.2 secs
Upgraded linear motor-driven “LIGHT-Bolt” CCD camera
Independent and paperless cleaning system
Unmatched printing accuracy up to ±12.5 um @ 6 sigma, ≥2 Cpk
Stencil lock and balanced squeegee pressure across product
Ready to pair with AGV for automatic stencil changing, towards Lights Out Manufacturing (LOM)
Full traceability conforming to Industrial 4.0

Specification	G-Tera
Dimension (L × W × H)	1,258 × 1,540 × 1,520 mm
Machine Weight	1,250 kg
Machine Alignment Capability	±8 µm @ 6 sigma, ≥2 Cmk
Process Alignment Capability	±12.5 µm @ 6 sigma, ≥2 Cpk
Core Cycle Time	5.2 secs
Max. Board Size (L × W)	Single-stage mode: 510 × 510 mm
Max. Board Size (L × W)	3-stage mode: 265 × 510 mm (Optional: 400 × 510 mm)
