Conformal Coating:
Conformal Coating
Solution

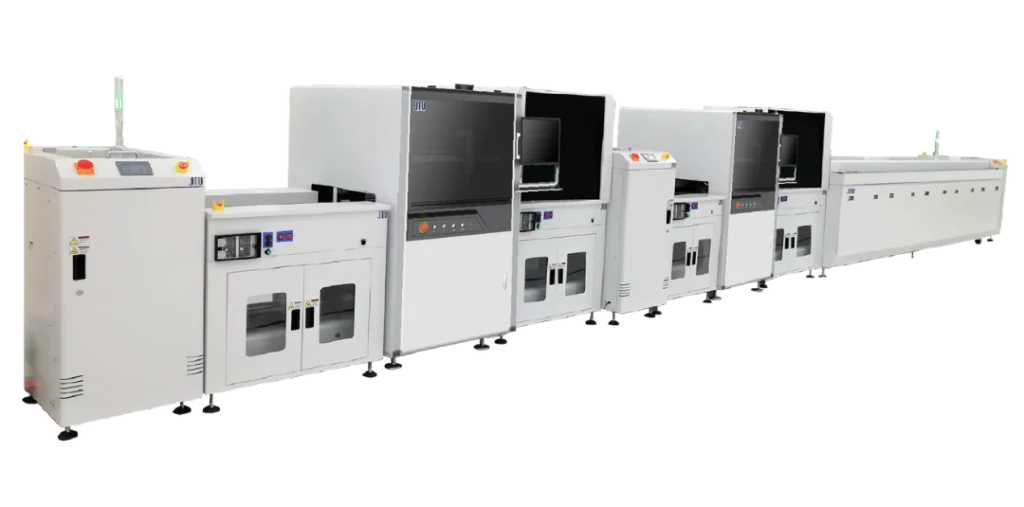

The One-Man-Operation (OMO) Concept with pallet return conveyor reduces manpower, cost & increases productivity & product quality consistency. The modular concept offers highly flexible configuration possibilities and expandability.
JTU offers a one-stop solution for selective conformal coating with:
- C Series Conformal Coating Machines
- jCURE+ Series Curing Ovens
- Automated Inspection Machines
- Board Handling Machines.

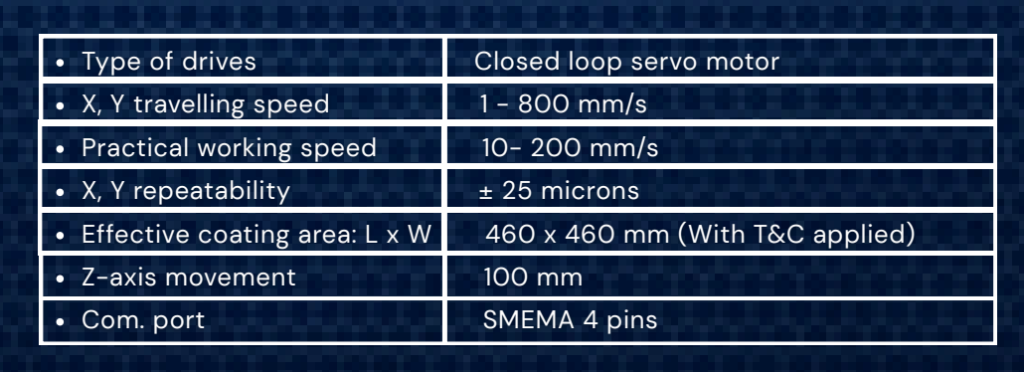

General
| Closed loop servo motor |
| 1 – 800 mm/s |
| 10- 200 mm/s |
| ± 25 microns |
| 460 x 460 mm (With T&C applied) |
| 100 mm |
| SMEMA 4 pins |

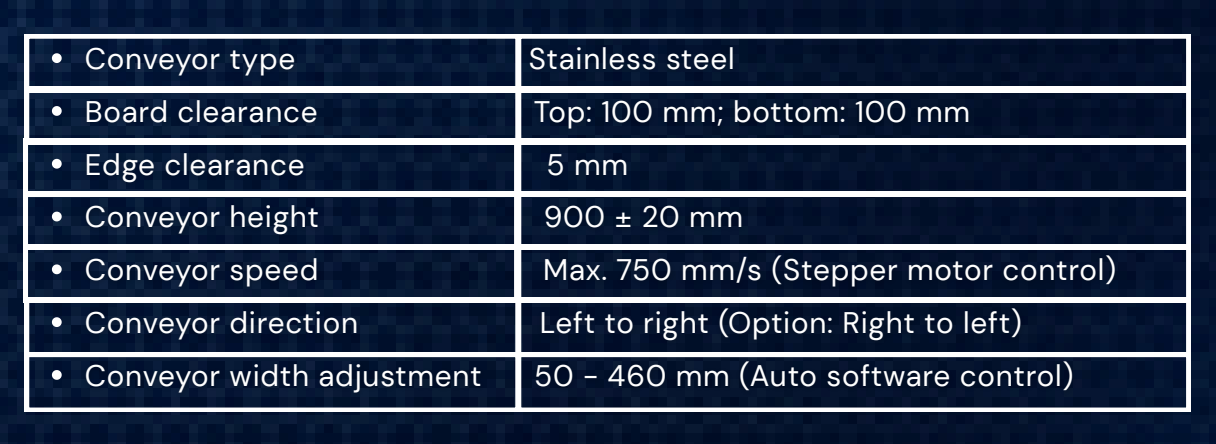

Conveyor System
| Stainless steel |
| Top: 100 mm; bottom: 100 mm |
| 5 mm |
| 900 ± 20 mm |
| Max. 750 mm/s (Stepper motor control) |
| Left to right (Option: Right to left) |
| 50 – 460 mm (Auto software control) |

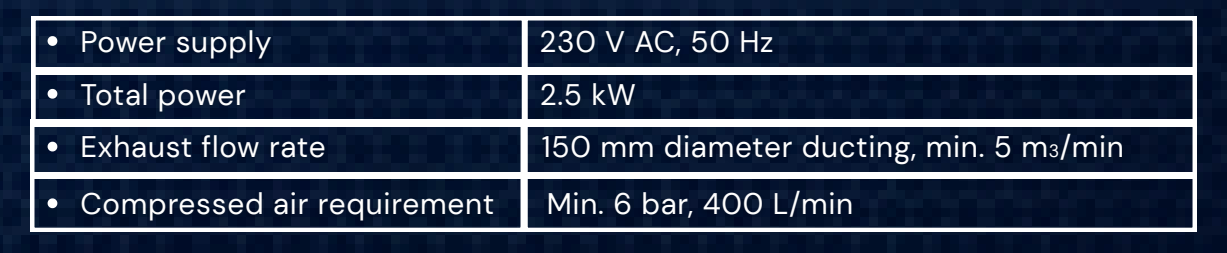

Utilities
| 230 V AC, 50 Hz |
| 2.5 kW |
| 150 mm diameter ducting, min. 5 m3/min |
| Min. 6 bar, 400 L/min |
