Coating Inspection:

Troi 8800 CI

The machine automatically sets production tolerance, detects coating defects, measures thickness via light refraction, and inspects both PCB sides, ensuring comprehensive quality control with side cameras and planned Z-axis development.

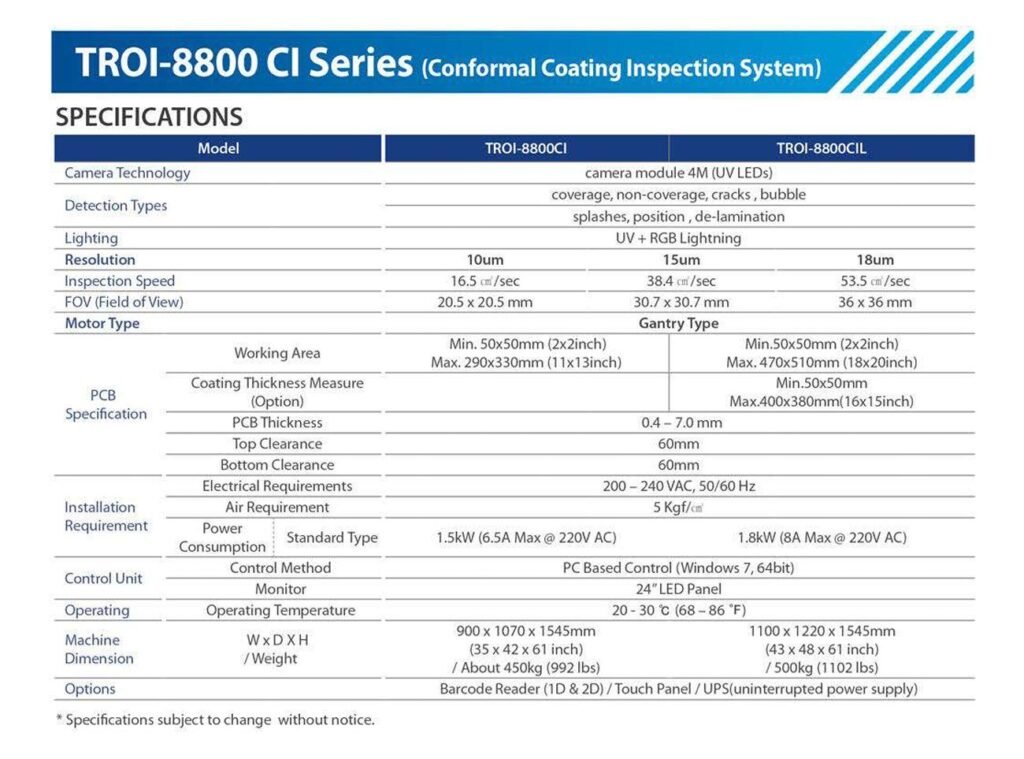

Model	TROI-8800CI			TROI-8800CIL
Camera Technology	Camera module 4M (UV LEDs)
Detection Types	Coverage, non-coverage, cracks, bubble
	Splashes, position, de-lamination
Lighting	UV + RGB Lightning
Resolution	10um		15um		18um
Inspection Speed	16.5 cm²/sec		38.4 cm²/sec		53.5 cm²/sec
FOV (Field of View)	20.5 x 20.5 mm		30.7 x 30.7 mm		36 x 36 mm
Motor Type	Gantry Type
PCB Specification	Working Area	Min. 50x50mm (2 x 2 inch) Max. 290x330mm (11x13inch)		Min. 50x50mm (2×2 inch) Max. 470x510mm (18x20inch)
	Coating Thickness Measure (Option)			Min. 50x50mm Max. 400x380mm (16x15inch)
	PCB Thickness	0.4 ~ 7.0 mm
	Top Clearance	60mm
	Bottom Clearance	60mm
Installation Requirement	Electrical Requirements		200 – 240 VAC, 50/60 Hz
	Air Requirement		5 Kgf/cm²
	Power Consumption	Standard Type	1.5kW (6.5A Max @ 220V AC)		1.8kW (8A Max @ 220V AC)
Control Unit	Control Method		PC Based Control (Windows 7, 64bit)
	Monitor		24″ LED Panel
Operating	Operating Temperature		20 – 30 °C (68 -86 °F)
Machine Dimension	W x D x H / Weight		900 x 1070 x 1545mm (35 x 42 x 61 inch) / About 450kg (992 lbs)		1100 x 1200 x 1545mm (43 x 48 x 61 inch) / About 500kg (1102 lbs)
