Wire Processing:

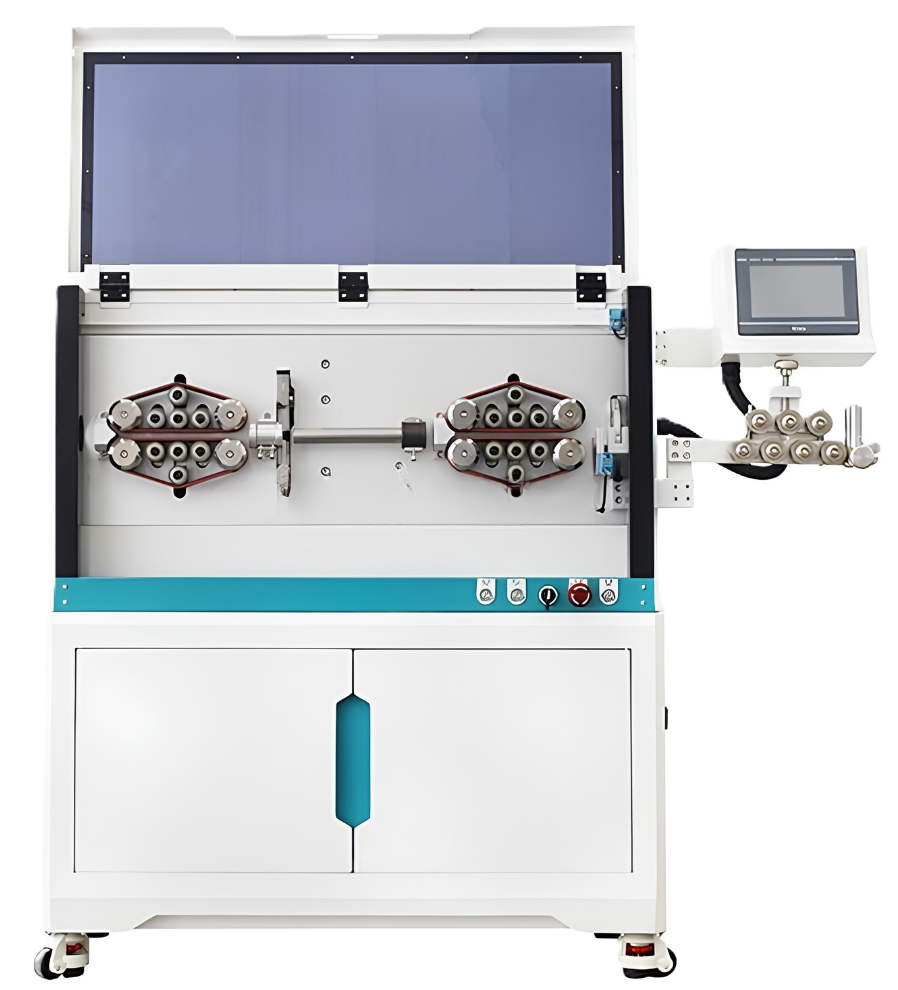

WS-612
Whether you are in the automotive, aerospace, or electronics industry, our 6-120 mm² wire cutting and stripping machine is the perfect solution for your wire processing needs. Experience unmatched precision, reliability, and efficiency with this professional-grade equipment.
- With a wide range of features, our 6-120 mm² wire cutting and stripping machine offers unparalleled performance. Its robust construction ensures durability and longevity, making it a reliable choice for heavy-duty applications. The machine’s cutting-edge technology enables it to handle wires ranging from 6 to 120 mm² with utmost precision.
- Equipped with advanced controls, this machine allows for easy customization of cutting and stripping parameters, ensuring optimal results for various wire sizes and insulation types. The intuitive interface provides a user-friendly experience, making operation seamless and efficient.
- Safety is paramount, and our wire cutting and stripping machine prioritizes it. It incorporates multiple safety mechanisms, including emergency stop buttons and protective covers, to prevent accidents and protect operators.
- Efficiency is at the core of our machine’s design. Its high-speed cutting and stripping capabilities significantly reduce production time, increasing overall productivity. Additionally, the machine’s automatic wire feeding system minimizes manual intervention, further streamlining the workflow.
- Maintenance is hassle-free with our 6-120 mm² wire cutting and stripping machine. Its modular design allows for easy access to components, simplifying routine maintenance and reducing downtime.
- In addition to its remarkable functionality, this machine is built to withstand rigorous usage in demanding industrial environments. Its sturdy construction and top-quality materials ensure long-lasting performance, making it a reliable investment for your business.
- Optional: MES system, Internet of Things system, fixed-point coding function, middle stripping function, external auxiliary equipment alarm.
| Model | WS-612 | WS-612H |
| Display method | 7-inch human-machine interface | 7-inch human-machine interface |
| Function | fixed-length cutting and stripping | ①Single-core wire, multi-core cable, shielded cable, fully automatic fixed-length cutting and stripping; ② For multi-core sheathed cables, the outer sheath is stripped and the inner core wires are stripped and cut at one time. |
| Wire type | single core wires, multi-core cables, shielded cables, etc. | single core wires, multi-core cables, shielded cables, etc. |
| Processing range | 6-120mm² | 6-120mm² |
| Cutting length | 1mm-999999.99mm | 1mm-999999.99mm |
| Cutting tolerance | Within 0.002*L (L=cutting length) | Within 0.002*L (L=cutting length) |
| Minimum total stripping length | total length–side A stripping length–side B stripping length >120mm | total length–side A stripping length–side B stripping length >120mm |
| Stripping length | side A full stripping: 1 – 300mm; side A half stripping: 1-1000mm side B full stripping: 1- 150mm; side B half stripping: 1-500mm | Internal and external stripping length side A stripping: outer sheath stripping 20-250mm, core wire 1-50mm side B stripping: outer sheath wire stripping 20-200mm, core wire 1-50mm |
| Max. diameter of guiding pipe | Φ30 | Φ28 |
| Wheel lifting method | Stepper motor lifting wheel | Stepper motor lifting wheel |
| Tool material | High quality imported high speed steel | High quality imported high speed steel |
| Productivity | 2000PCS/hour (depending on the length and size of the cable) | 2000pcs/hour, (sheathed wire 1000pcs/H) according to the length and size of the wire |
| Drive mode | 32-wheel drive (feeding stepper motor, tool holder servo motor); servo feeding optional | 32-wheel drive (feeding stepper motor, tool holder servo motor); servo feeding optional |
| Wire delivery method | Belt feeding, no embossing or scratches on the cable. (With peeling and pressing function) | Belt feeding, no embossing or scratches on the cable. (With peeling and pressing function) |
| Lifting operation mode | Digitally adjustable pressure wheel height | Digitally adjustable pressure wheel height |
| Power supply | AC220V 50/60Hz; 110V 50/60Hz optional | AC220V 50/60Hz; 110V 50/60Hz optional |
| Air source | 0.5-0.8Mpa clean air source | 0.5-0.8Mpa clean air source |
| Dimensions (length*width*height) | 1200*720*1460mm | 1200*720*1460 |
| Net weight | 270KG | 250KG |

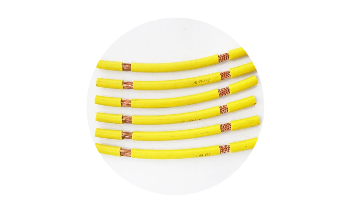

Performing examples:
