Insertion:

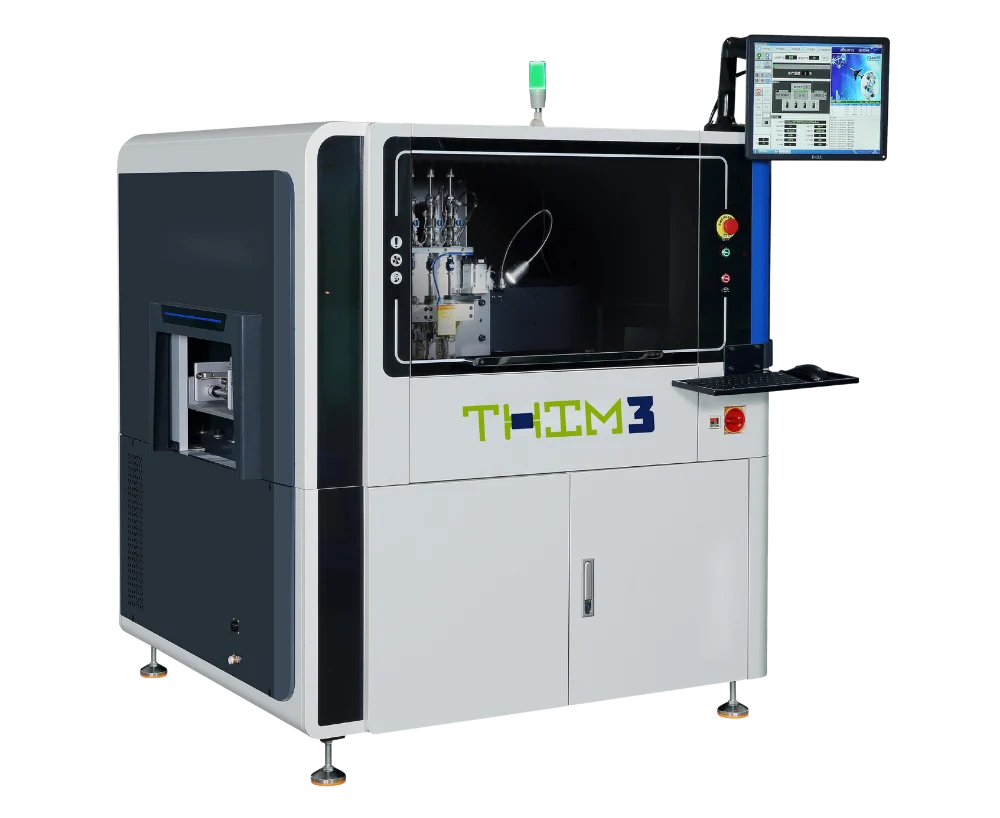

THIM3-T

The machine is used to automatically cutting terminals of automotive fuse into a sing piece before it is inserted onto PCB driven by cam mechanism with servo motor. A certain strength is connected between terminals and PCB. Monitoring, programing, automatic analysis and easy operation makes stable and automatic production.

Parameter	Specifications
PCB Size Max	Max: 350 × 245 mm
PCB Direction	L-R:R-L
PCB Support	PCB Mold
Platform Speed	70 M/Min
Pin Direction	360° Free Rotation
Insertion Speed	140-220 Pcs/Min
Communication	RS485/RS232
PCB Exchange Time	6 S
Feeding Type	Rolling
Insertion Head	1-3
Hole Position Recognition	CCD High-definition Industrial Camera Vision System
Control System	Industrial computer + display screen Windows system
Machine Dimension	L2070 × W1250 × H1600 (mm)
Repetition Accuracy	±0.018 mm
Machine Frame	Steel Structure
Weight	About 1200 KG
Air Pressure	0.55 ± 0.05 MPa
Power Consumption	1500 W
Supply Voltage	AC220V 60Hz
Operating Temperature	5-40 °C
Operating Humidity	10-90% RH
Environment Requirement	Non-corrosive Gas
