Insertion:

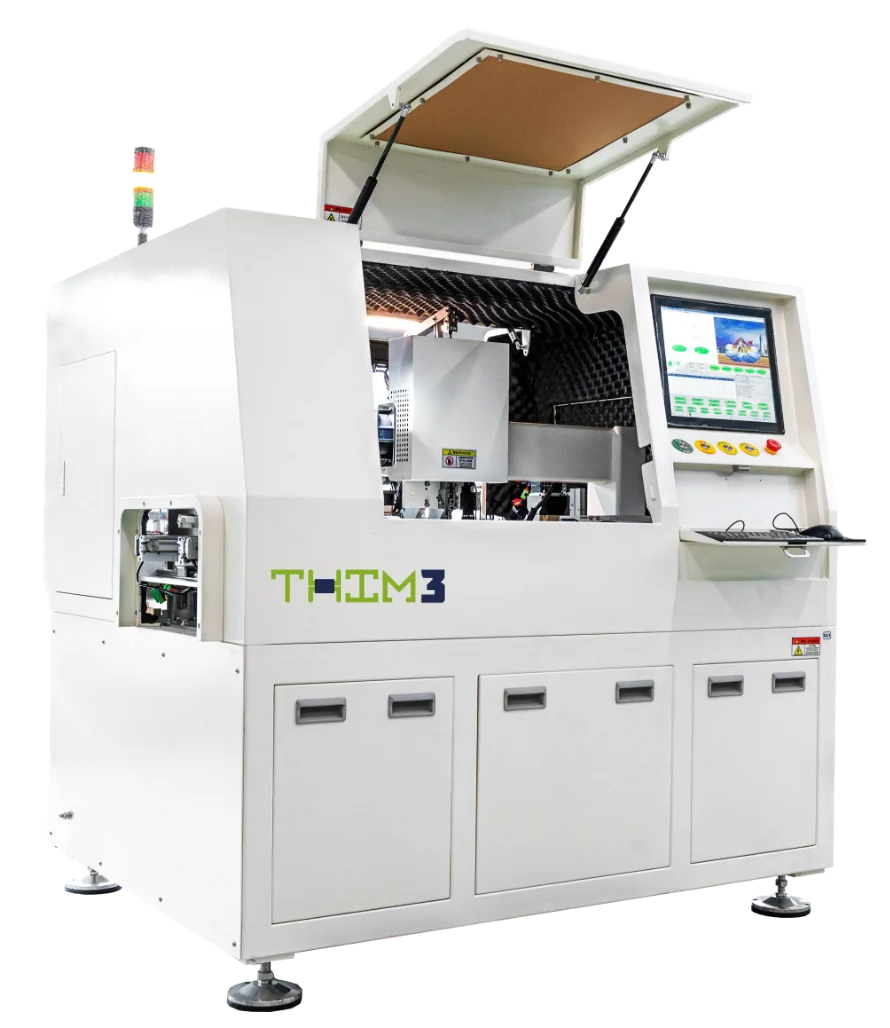

THIM3-R

The new generation features a streamlined design with an advanced motion-control wiring system and custom high-end servo drivers. Lower failure rate less downtime, more peace of mind.

Parameter	Specifications
Actual Insertion Speed	14,000 points/hour
Insertion Direction	Any angle
Pin Span	2.5/5.0 mm (7.5/10.0 mm optional)
Board Size (Loading)	Min. 50 × 50 mm, Max. 500 × 500 mm
Board Size (Insertion Range)	Min. 50 × 50 mm, Max. 500 × 500 mm
Board Thickness	0.79–2.36 mm
Component Specification	Max. height 20 mm, max. diameter 13 mm
Feeder Quantity	10
Feeder CTA Drive	Lead screw
Base Drive	Pneumatic cylinder (motor drive optional)
Insertion Bending Length	1.2 / 1.5 / 1.8 mm (adjustable)
Insertion Bending Angle	10°–35° outward bending
Board Transfer Direction	Left to right or right to left
Machine Dimensions	Main unit: L1580 × D2020 × H1700 mm
Machine Weight	Approx. 800 kg
Power Supply	Single-phase AC 220V 50/60Hz
Power Consumption	2.0 kW
Air Pressure	0.6 MPa
Air Flow Rate	0.38 m³/min
Environmental Conditions	Ambient temperature 5–30°C
Noise Level	75 dB
Hole Alignment Method	Machine vision system
Control System	Custom bus-based multi-axis controller
Servo System	Custom bus-based AC servo system
Data Input Method	USB input (Excel file format)
Operating System	Chinese operating interface (Windows 7 control platform)
Control Mode	Fully automatic, semi-automatic, manual
Programming Mode	Online programming
