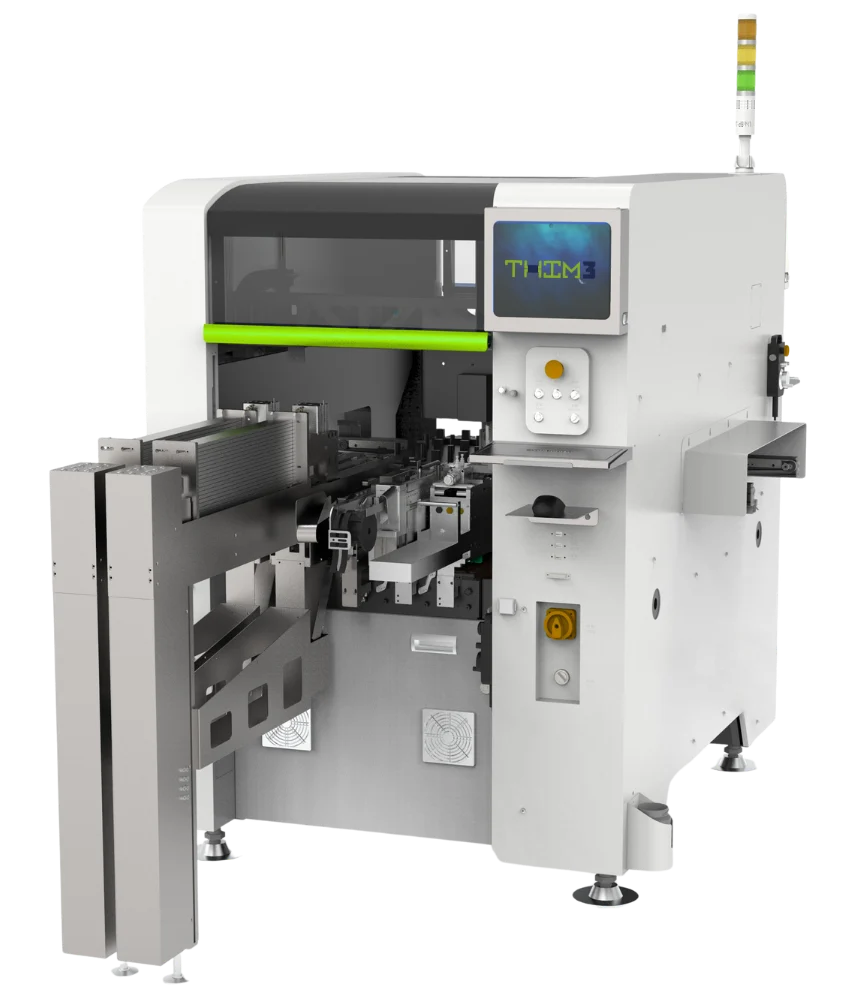

THIM3-OF3

The THIM3-OF3S is an advanced odd component insertion machine designed for high-speed, high-precision operations. It integrates up to six heads for versatile component insertion (gripper or suction cups).

Parameter	Specifications
Size (L×W×H)	1450 × 1740 × 2010 mm
Weight	1650 kg
Operation System	Windows
No. Of Door	Double Side
Safety Grating (Door)	Standard Configuration
Air Supply	0.5-0.65 MPa (ANR)
Max Power	6.3 kW
Run Power	3.5 kW
No. of Insertion Heads	6
Max Component Size	φ50 (35 × 35) mm
Component Height	≤ 40 mm
Component Feeding Type	Nozzle / Clamp
Speed / Component	0.7 s
Placement Accuracy (CPK ≥ 1.0)	± 0.06 mm
Insert Power	≤ 29.4 N
Insertion Direction	0-360°
Insert Component Object	Connector, Switch, Socket, Transformer Coils, Ports, Capacitors, Resistors, IC, etc.
PCB Size (L×W)	70 × 70 ~ 410 × 550 mm
Carrier Size (L×W)	Max. 410 × 550 mm
PCB Thickness	0.6-2.0 mm
Conveyor Space (Upper/Lower)	40 mm / 20 mm
Max. PCB Weight	2 kg
PCB Included Side Width	≥ 5 mm
PCB Fixed Type	Cylinder clamping
Conveyor Type	Chain
PCB Direction	Right to Left / Left to Right
Conveyor Section	3
Conveyor Adjusting	Auto
Conveyor Height	900 ± 20 mm
Lead Clinching Unit	N/A (/)
Laser Height	N/A (/)
Auto Nozzle	N/A (/)
SMEMA	Standard Configuration
MES Connection	Standard Configuration
Vision System	Mark CCD (Top): 1
Vision System	Component CCD (Bottom): 3
