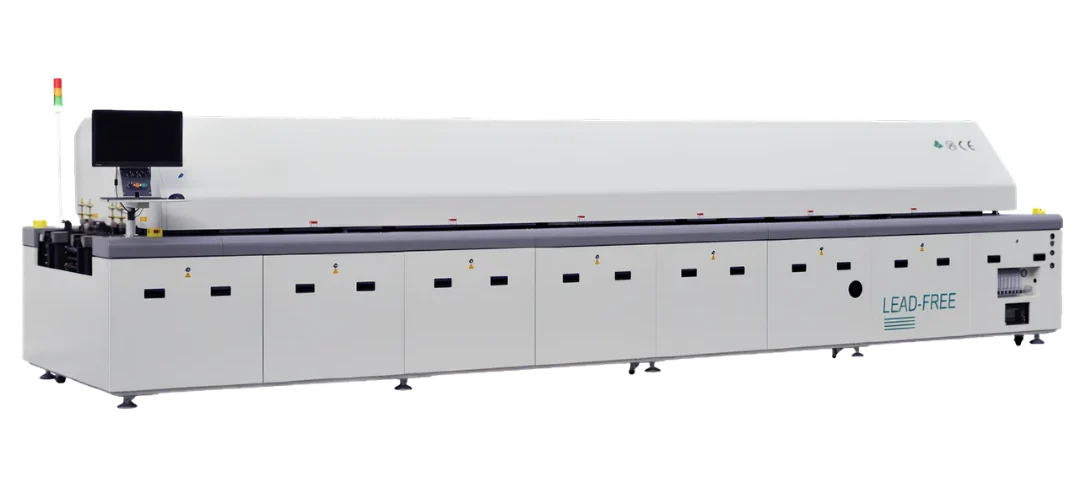

Reflow Oven:
AR Series
- Hands-free fully automatic reflow oven
- Highlighted in automation & traceability
- Automatic recipe switching and width adjustment
- MES i4.0 ready with production information recorded
- Excellent heat transfer efficiency and recovery
- Longer heating zone to reduce temperature difference on PCB
- Unique and effective jet nozzle design
- Front & rear heat flow convection
Upgrade maximum conveyor width to 610 mm [For AR-, AR-N only]
- Standard maximum conveyor width: 460 mm
- For larger PCBs
- Machine external body width becomes 1,656 mm
Maximum conveyor width 300 mm x 2 lanes [For AR-D, AR-DN only]
- Factory fitted option (Without extra charge)
- Single buckle chain will be used
- Distance between 1st and 4th rails becomes 730 mm
Dual lane conveyor at different speed control [For AR-D, AR-DN only]
- Increase productivity
- Simultaneous reflow for products with different requirements
Upgrade maximum set temperature to 400°C
- Standard maximum set temperature: 300°C
- For higher required temperature
Nitrogen/air system switching [For AR-N, AR-DN only]
- Flexible to switch in between nitrogen and air production
- Maintain the cleanliness of radiators and chamber
Center board support (CBS) system with automatic position adjustment
- Minimize the chances of PCB drops
- Support large PCBs
- With automatic CBS chain position adjustment
- Mesh belt will be removed
Blower fan speed monitoring
- Blower motor in specific zone which is out of setting will be shown
- Easy for troubleshooting
MES customization (i4.0)
- Track & record the parameters of the production
- Customise based on customer’s requirement
Advanced profiling robot ProBot (OEM by KIC)
- 1 PCB 1 profile
- Eliminate expensive periodic manual profiling
- Reduce production downtime
- A complete thermal profile management with full traceability 24/7
- Trigger alarm if profile is out of spec
- Able to switch program automatically
