Marking:
MAC
- Expanded marking capabilities.
- Premium laser sources (CO2 / UV / Green / Fiber) from USA & Germany.
- Longer lifespan and high marking accuracy.
- Dual-camera design for fiducial mark recognition & 2D code validation.
- XY-axis and angle compensation.
- 3-Stage conveyor for shorter takt time
- Stable clamping for heavy products
- Cost-effective marking solution without compromising performance
- Double-sided marking with integrated flipper
- Industry 4.0 ready
General

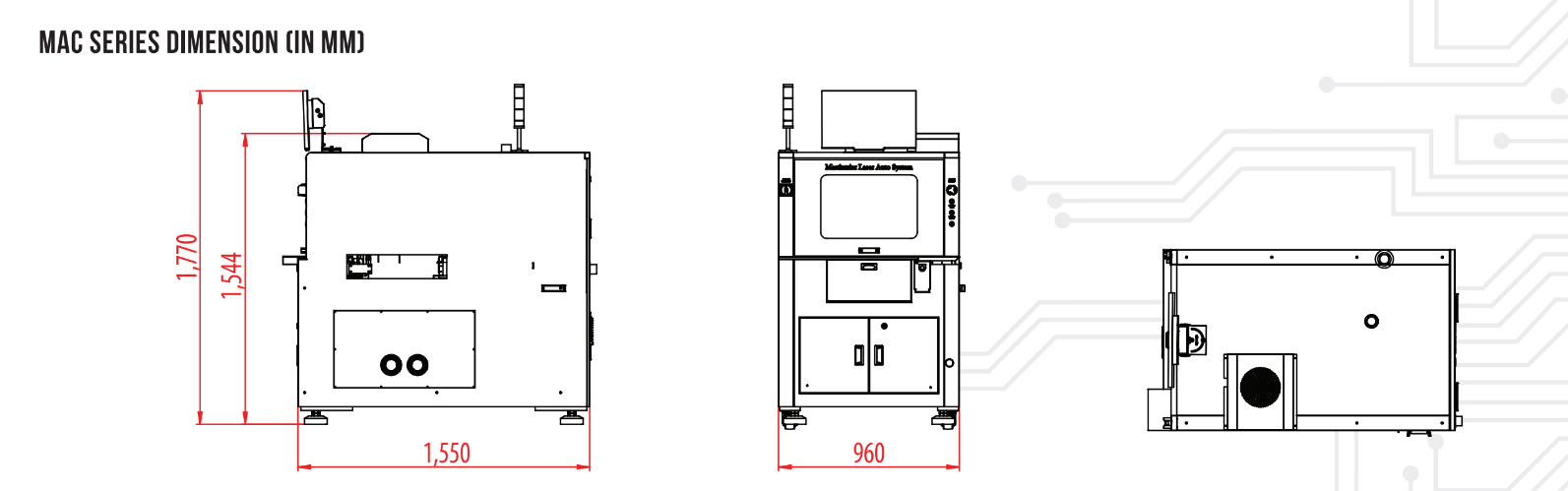

| Dimensions (L*W*H) | 960 x 1,550 x 1,544 mm |
| Total effective marking area (L*W) | 510 x 460 mm |
| PCB size (L*W) | (65 x 65) ~ (510 x 460) mm |
| PCB Thickness | 0.4 ~ 3.5 mm |
| PCB weight | 2 kg |
| Conveyor type | 3-Stage belt conveyor |
| Marking Position Accuracy | ± 20 um |
| Marking Angle | 0 – 359° |
| Marking Type | 1D barcode, 2D code, alphabet, number, logo, graphic |
| Laser source | CO2 (MAC-C30) / UV (MAC-U5) / Green (MAC-G10) / Fiber (MAC-F30) |
| Control system | PC (Windows 11 OS) |
Product
| Parámetro | Valor (Todos los modelos) |
|---|---|
| PCB size (L × W) | 65 × 65 – 510 × 460 mm |
| PCB thickness | 0.4 – 3.5 mm |
| PCB weight | 2 kg |
| Component maximum height | 30 mm |
| Edge clearance | 3 mm |
Laser and Marking
| Parámetro | MAC‑C30 | MAC‑U5 | MAC‑G10 | MAC‑F30 |
|---|---|---|---|---|
| Laser source | CO₂ – Coherent from USA | UV – AOC from USA | Green – AOC from USA | Fiber – IPG from Germany |
| Laser power | 30 W | 5 W | 10 W | 30 W |
| Laser life time | 45,000 hours | 20,000 hours | 20,000 hours | 40,000 hours |
| Laser cooling | Air | Water | Water | Air |
| Laser wavelength | 10.55 – 10.63 µm | 355 nm | 532 nm | 1064 nm |
| Laser class | Class 4 | Class 4 | Class 4 | Class 4 |
| Total effective marking area (L × W) | 510 × 460 mm | 450 × 400 mm | 450 × 400 mm | 450 × 400 mm |
| Maximum marking area per FOV | 60 × 60 mm (With F130‑90 lens) | 55 × 55 mm (With F100‑70×70 lens) | 55 × 55 mm (With F100‑70×70 lens) | 55 × 55 mm (With F100‑70×70 lens) |
| Cell/dot size | < 0.127 mm | < 0.085 mm | < 0.09 mm | < 0.085 mm |
| Minimum 1D barcode size (L × W)*¹ | 13 × 2 mm (10 characters) | 13 × 2 mm (10 characters) | 13 × 2 mm (10 characters) | 13 × 2 mm (10 characters) |
| Minimum 2D code size (L × W)*¹ | 2 × 2 mm (10 characters) | 2 × 2 mm (10 characters) | 2 × 2 mm (10 characters) | 2 × 2 mm (10 characters) |
| Marking accuracy | ± 20 µm | ± 20 µm | ± 20 µm | ± 20 µm |
