Cleaning Procesess:

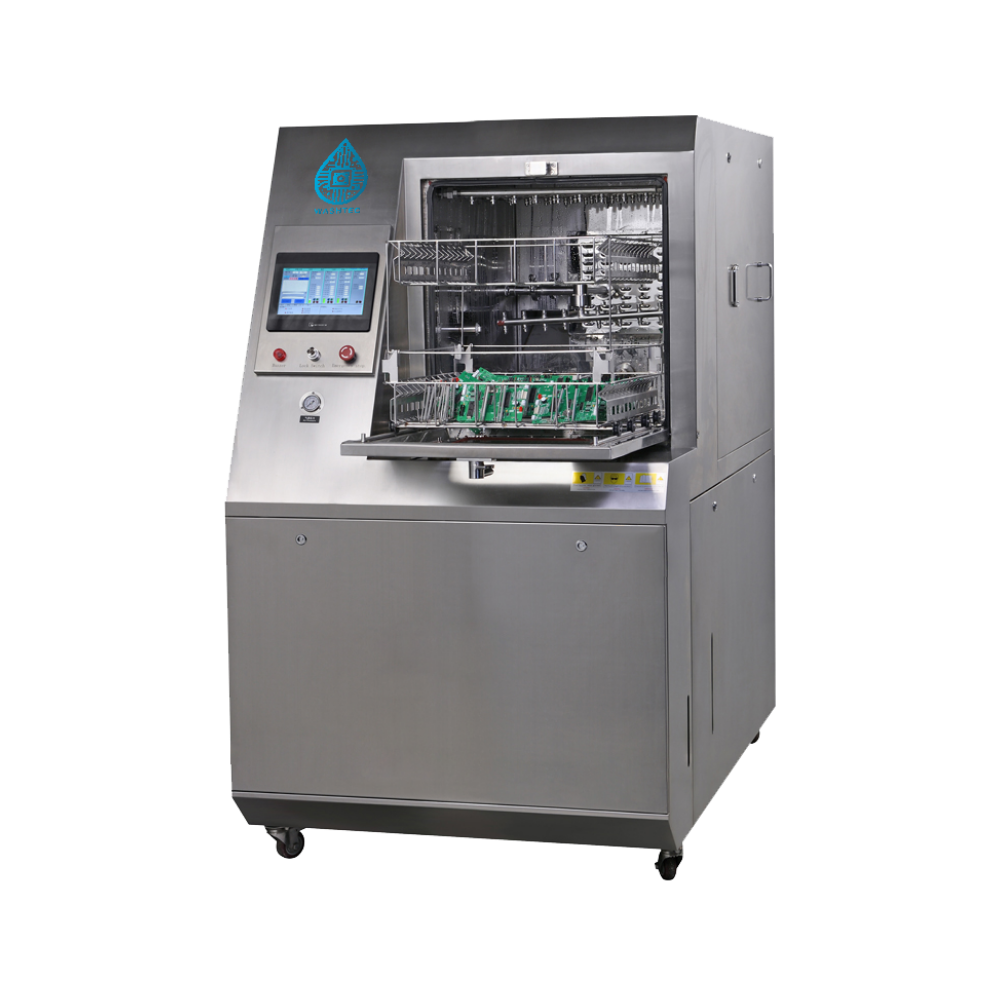

WT-OPCB
For surface cleaning of SMT PCB and PCBA in electronic industry, the most advanced cleaning technology in the industry is used to achieve 100% cleanness and environmental protection.
The machine is composed of cleaning system, rinsing system, fine rinsing, drying system and filtration system. 100% Close loop operation, Zero discharge.
The equipment is rinsed with water-based liquid detergent and DI water, without any potential safety hazard and no harm to personnel
| Model | WT-OPCB |
| Dimension（mm） | L1670*W1100*H1860 |
| Power supply | Three phase380V（3 phase 5 cable） |
| Total Power | 33KW |
| Current | 50A |
| Air supply | 0.4-0.6Mpa |
| Exhaust port | Ø125 |
| Clean tank volume | 42L |
| Pre-rinse tank volume | 28L |
| Rinse tank volume | 55L |
| Filter | 0.2μm 10 inch |
| Clean basket | 500*550*100MM（two layer） |
| Clean time | 8–10Min |
| Clean method | Spray-Pre rinse- Rinse- hot-air drying |
| Control | PLC+Touch screen（ One button start ） |
- High pressure spray system for PCB / PCBA cleaning process with water-based detergent.
- Three liquid tanks equipped with heating system to meet the needs of cleaning, rough rinsing, fine rinsing and hot air drying.
- Process flow: Cleaning – chemical isolation – rinsing (open-loop / closed-loop) – drying.
- Advanced automatic touch screen operation software, program files can be saved and easy to use.
- The counting function of the system can automatically accumulate the number of cleaning PCB boards and the number of cycles of filtering.
- The liquid and pump pressure can be displayed by the panel pressure gauge to feed back the operation status of the equipment in time.
- Conductivity monitoring rinse liquid to ensure cleanliness, conductivity can be set to meet different PCB process requirements.
- Solid and durable overall stainless steel body; acid or alkaline detergent resistant.
- The rinsing method is overflow, and the water from the fine rinsing overflows to the rough rinsing tank without repeated pollution.
- High pressure fan + hot air drying, the drying effect is faster and thorough.
- Running cost more low, just consumption 80-120ml solvent for pre clean cycle. the residual liquid on pipeline and pump will direct recycle, could reduce 50% consumption.
