Cleaning Processes:

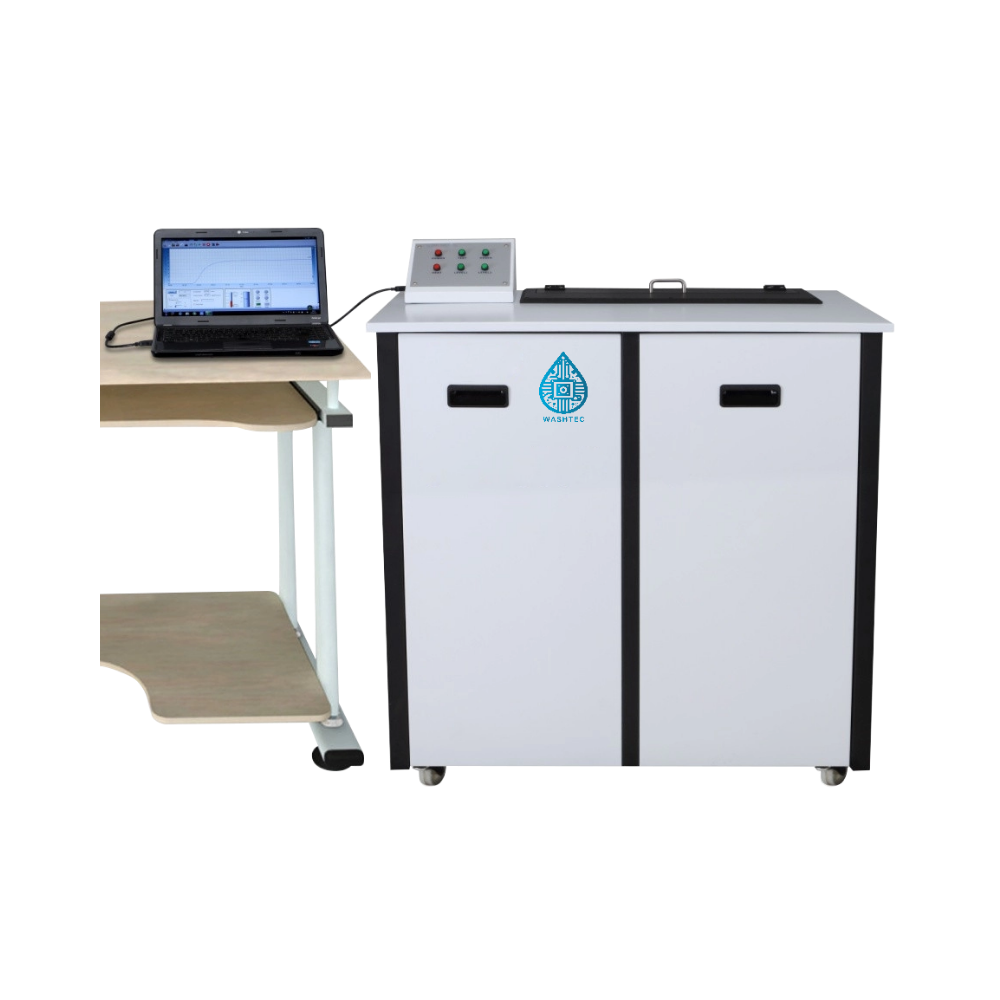

WT-10NCA

The WT-10NCA is a high-quality ion contamination tester designed for mid-sized PCBs, PCBA, and semiconductor products. It utilizes the ROSE method to accurately measure ionic contamination and calculates NaCl equivalent values with high-precision probes.

Compliant with industry standards like IPC-TM-650 and MIL-STD-2000A, the WT-10NCA ensures accurate and repeatable results for both bare and assembled boards.

Its customizable test tank and dynamic/static testing options make it adaptable to various testing needs. With user-friendly software, a Windows-based interface, and support for multiple languages, the machine offers seamless data recording and reporting capabilities.

Model	WT-10NCA
Power supply	220VAC 50/60Hz
Machine dimensions	80 Kilograms
Weight	900 (Large) x 440 (Wide) x 1100 (Height) mm.
Test method	Static
Sensitivity	0.001us/cm.
Solution capacity	15 Liters
Sample size	480 x 400 x 45 mm.
Contamination test methode	IPC-TM-650.
Max operation temperature	45° C

All stainless steel body: beautiful, wear-resistant, corrosion-resistant, in line with environmental requirements and standards.
All pneumatic operation, no electricity, no fire and other safety hazards.
Side wall air inlet blow dry design.
Humanized design: one key operation, automatic adding and discharging liquid function, easy to operate.
Replaceable modular controller and fast plug-in design, maintenance is also very simple and convenient.
Design of two-stage filter system, low air outlet and S-type exhaust pipe.
High density, equal pressure, double side rotary cleaning nozzle, strong cleaning power, no damage to the tension of steel mesh.
Systematic integration of global high-quality control devices to ensure excellent quality, stable performance and long service life.
