Wire Processing:

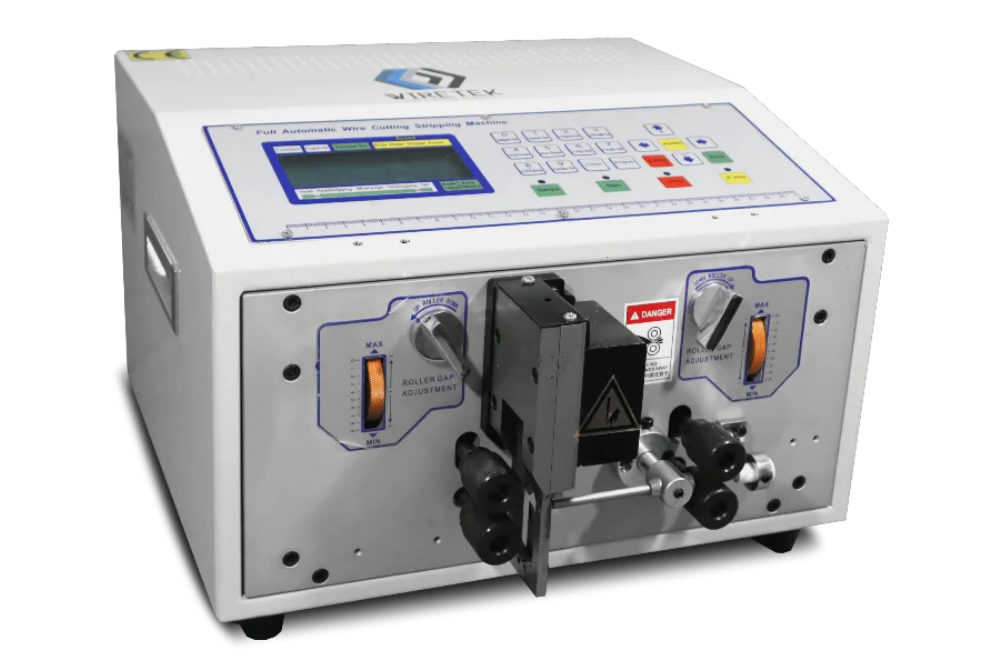

WS-01B
This machine allows the strip of cables from materials such as PVC, Teflon, silicone and fiberglass.
Its application is wide in industries such as harnesses, automotive, electrical applications, instrumentation, lighting, among others
1. Fully automatic cutting and stripping, high cost performance.
2. Adopts LCD screen dialogue mode, simple operation and maintenance, stable performance.
3. The WL-BSDB and WL-BSDB2 can process two wires at one time, improve the work efficiency.
4. Integrated electromechanical, microcomputer work fast speed and high precision.
| Category | Specification |
|---|---|
| Model | WS‑01B |
| Features | Process one wire at one time |
| Conductor Cross Section | 0.1–4.5 mm² |
| Stripping Length | Head: 0–35 mm Tail: 0–15 mm |
| Cutting Length | 1–999.9 mm |
| Cutting Length Tolerance | ≤ (0.002 × L) mm |
| Intermediate Stripping | Max 11 sections |
| Conductor Diameter | Φ 6 mm |
| Production Rate | 3000–8000 pcs/h |
| Drive Method | 4 wheels drive |
| Display Screen | Chinese / English LCD screen |
| Power Supply | 110/220 V AC, 50/60 Hz |
| Power | 200 W |
| Weight | 30 kg |
| Dimensions | 39 × 35 × 25.5 cm |
Performing examples:
