CF-101

Cutting and Forming:

High performance quiet motor with adjustable speed.
Cutting components such as resistors, capacitors, among others.
Suitable for roll/reel components.
Compact size and suitable for precise dimensions.
Component counter is optional.

Power: 110V/60Hz; 220V/50Hz
Dimension: 520(L) x 380(W) x 300(H) mm
Net Weight: 24 kgs
Capacity: 60,000 pcs /Hour
Quiet, high performance motor with adjustable speed.

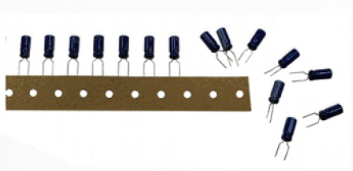

Cut off single-side taped radial Resistor, Capacitor, Crystal and similar components.
Suitable for single bandoleer in roller / reel or AMON box.
Component counter is an optional accessory. Please advise upon the order.
Compact, suitable for shortening lead operation in precise dimensions.

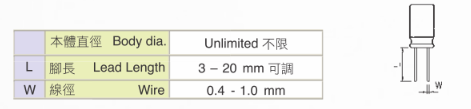

CF-101/HCF-101: for 12.7 mm paper tape bare hole pitch (A); CF 101S/HCF-101S: for 15 mm paper tape bare hole pitch (A).
