Athena TPI

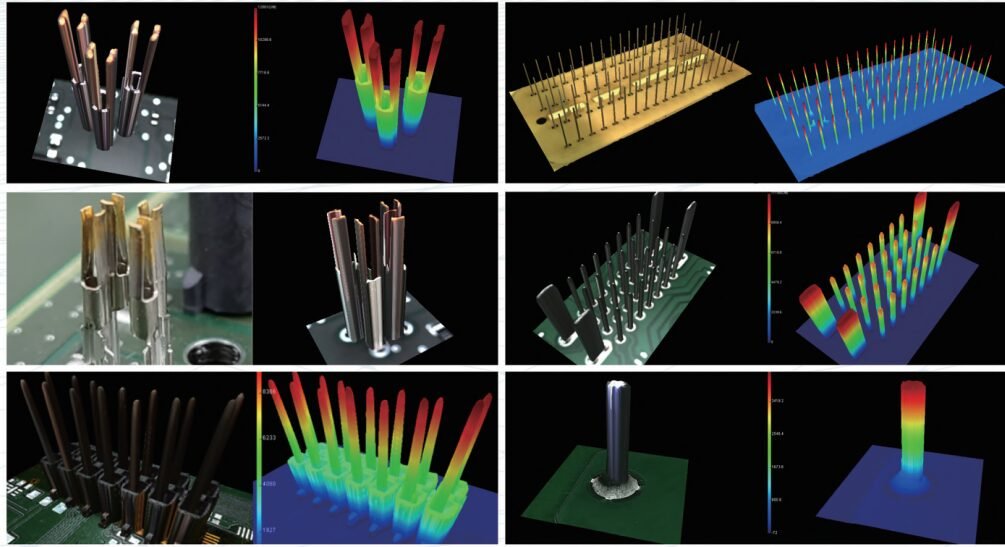

ATHENA TPI offers advanced vision inspection with 4-way DLP projectors, providing high-speed, high-accuracy 2D/3D inspections. Customizable multi-functional systems and excellent GUI software ensure quality control across various industries and applications.
Advanced Vision Inspection Technology
Multi functional inspection systems
Hihg speed and high accuracy inspection
Leading Software Solutions
| Model | ATHENA TPI |
|---|---|
| Camera | 10MP / 12MP |
| Resolution (10MP) | 10µm / 15µm / 18µm |
| Resolution (12MP) | 10µm / 15µm |
| Inspection speed (10MP) | 19.2cm/s / 43.2cm/s / 61.5cm/s |
| Inspection speed (12MP) | 24cm/s / 34.5cm/s |
| FOV – Field of View (10MP) | 32×30mm / 48×45mm / 57×54mm |
| FOV – Field of View (12MP) | 40×30mm / 48×36mm |
| Pin Height Range | 20mm ± 10mm (can be customized) |
| Height accuracy | ± 3% |
| Max PCB Size | 330 × 330mm (13 × 13 inch) |
| Min PCB Size | 50 × 50mm (2 × 2 inch) |
| PCB Thickness | 0.4 ~ 7mm |
| Top Clearance | 50mm |
| Bottom Clearance | 100mm |
| Dimension (W × D × H) | 1050 × 1350 × 1550 mm (41 × 53 × 61 inch) |
| Weight | 990kg (2183lb) |
| Power consumption | 3.5KW (16.0A Max @ 220 AC) |
| Electrical Requirement | 200 ~ 240Vac, 1 Phase, 50/60Hz |
