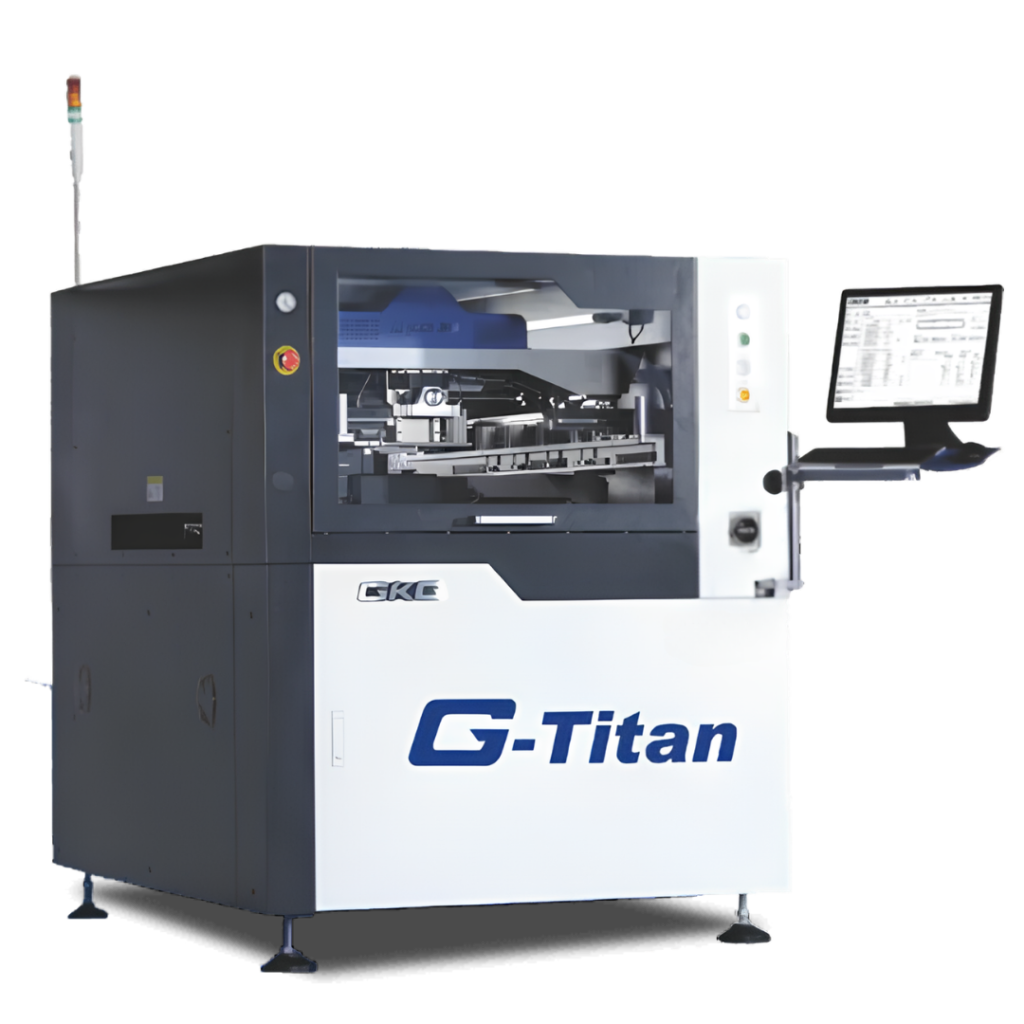

G-Titan
Insight into the future
The G-Titan printer from GKG offers top-of-class standard features including the OPC (optimum paste control) system.
| Performance | |
| Machine Alignment Capability | 2Cmk @ ±10 microns @ 6 sigma |
| Process Alignment Capability | 2Cpk @ ±18 microns @ 6 sigma |
| Core Cycle Time (excluding printing & cleaning time) | <8.5 secs |
| Product Changeover Time | <3 secs |
| New Product Set-up Time | <10 secs |
| Facilities Requirement | |
| Power Supply | AC220V ± 10% 50/60Hz |
| Power Consumption | 3kW |
| Air Supply | 4 6Kgf/cm2 |
| Air Consumption | 5L/min |
| Dimension (excluding signal tower) | 1,240mm (L) x 1,560mm (W) x 1,490mm (H) |
| Machine Weight | 1,200kg |
| Board Handling | |
| Max. Size (L x W) | 510mm x 510mm |
| Min. Size (L x W) | 50mm x 50mm |
| Thickness | 0.4~6mm |
| PCB Thickness Adjustment | Automatic |
| PCB Max. Weight | 5kg |
| PCB Edge Clearance | 3mm |
| PCB Bottom Clearance | 23mm |
| PCB Warpage | Max 1% diagonally |
| Clamping Method | Auto retractable top clamp, motor controlled side clamp |
| Support Method | Magnetic support pins, bars, blocks, vacuum suction |
| Conveyor Direction | L to R, R to L, R to R, L to L (software control) |
| Conveyor Height | 900 ± 40mm |
| Conveyor Speed (max.) | 1,500 mm/s |
| Conveyor Width Adjustment | Automatic |
| Operator Interface | |
| Hardware | Touch Screen LCD Monitor, Mouse & Keyboard |
| Operating System (OS) | Windows 7 or Higher |
| Control Method | Industrial PC controlled |
| I/O Interface | SMEMA Standard |
| Printing Parameters | |
| Stencil Frame Size (L x W) | Adjustable, 470mm x 370mm to 737mm x 737mm |
| Print Gap (snap-off) | 0~20mm |
| Printing Table Adjustment Range | X:±10mm, Y:±10mm |
| Print Speed | 10~200mm/s |
| Squeegee Pressure | 0.5~10kg (program control) |
| Squeegee Type | Std.: OPC Squeegee 300mm, 450mm & Metal Squeegee 520mm Option: Rubber |
| Squeegee Angle | Std. 60º, Option 45º, 50º, 55º |
| Cleaning System | Auto wet, dry, vacuum (Software select) |
| Optical System | |
| Field-of-View (FOV) | 10mm x 8mm |
| Fiducial Types | Circle, triangle, square, diamond, cross |
| Fiducial Size | 0.5~4.0mm |
| Vision Methodology | Digital CCD camera look up & down |
| 2D Inspection | Max. 100 windows to inspect missing & insufficient (std.) |
